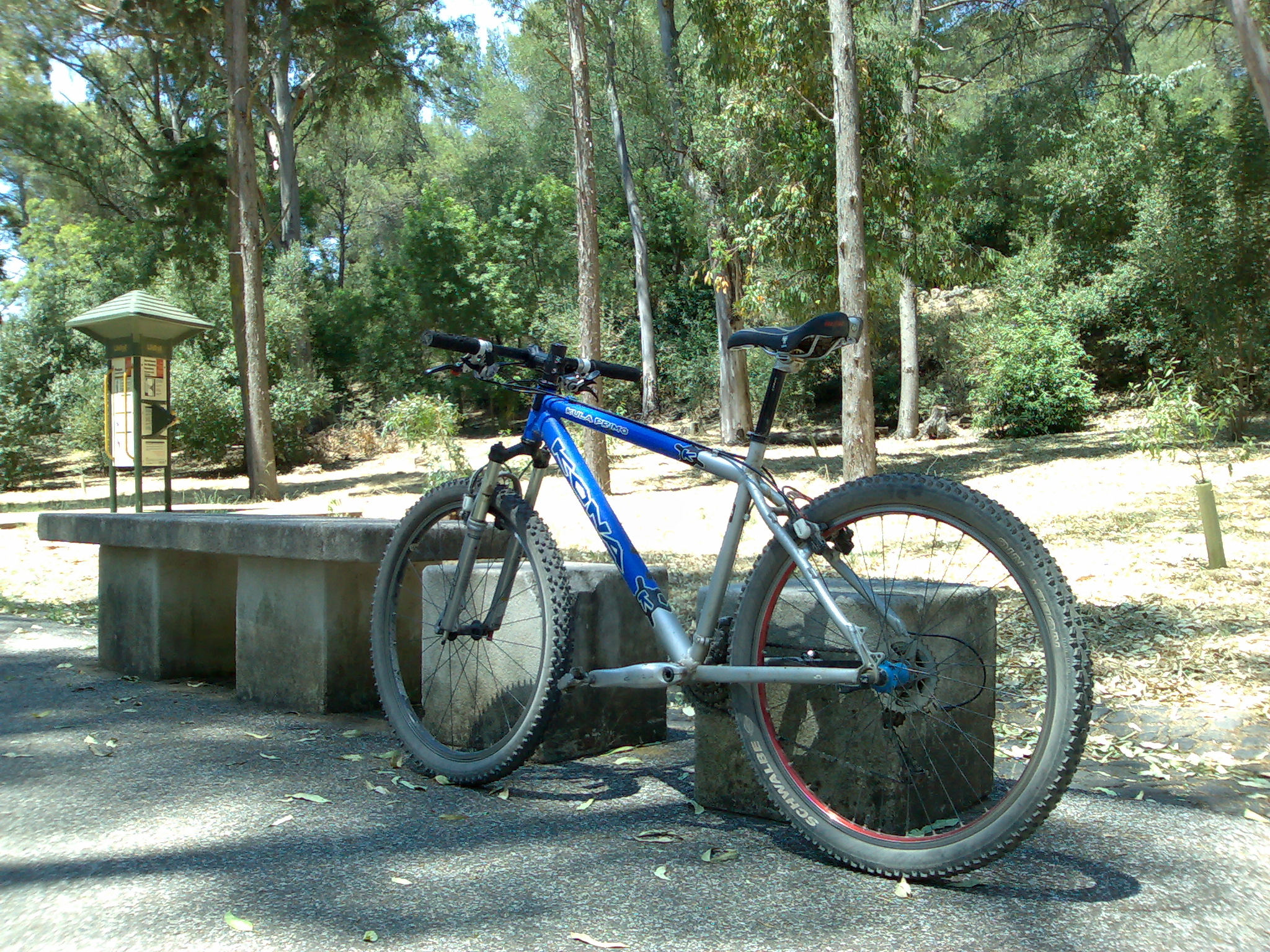

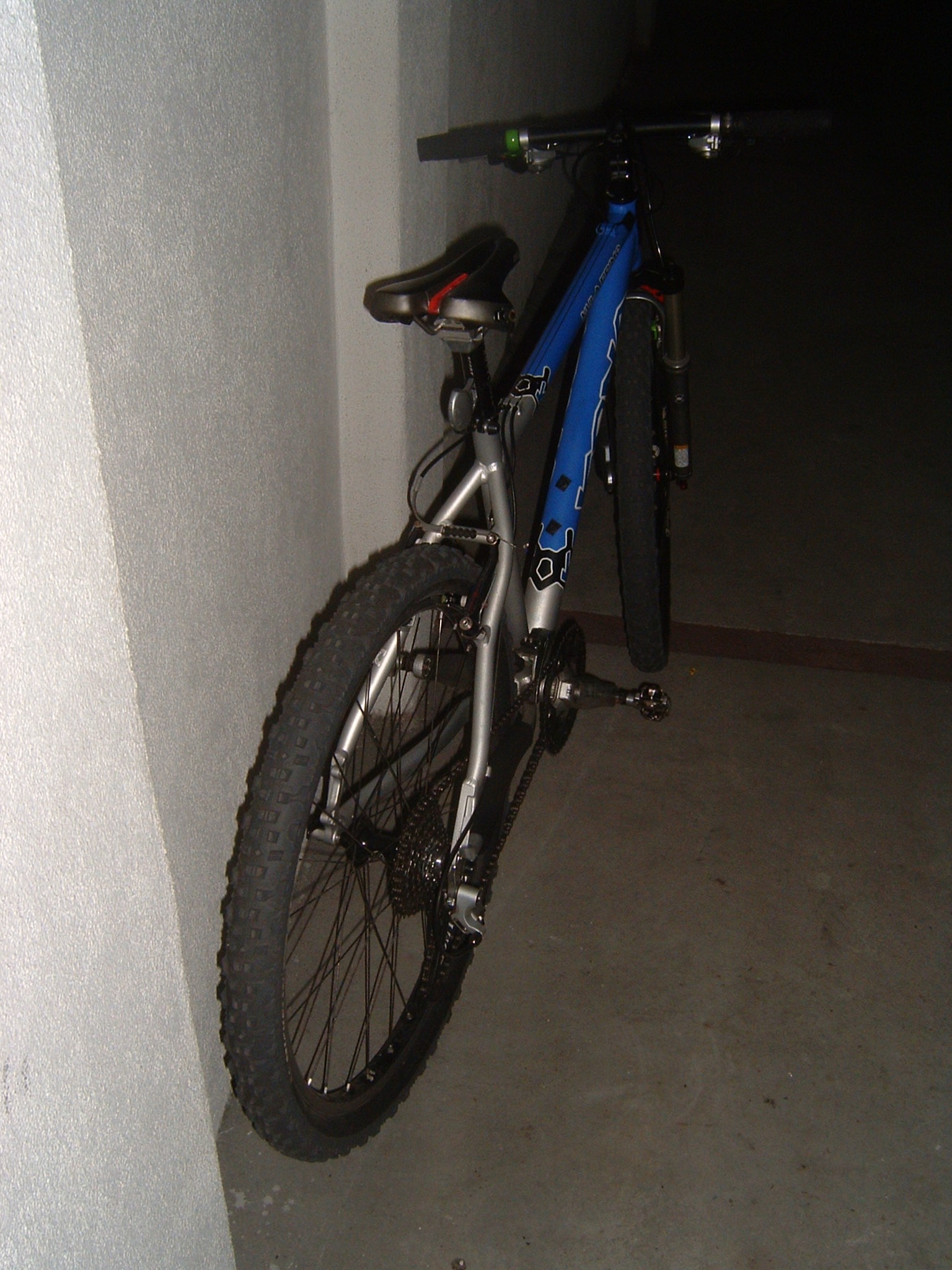

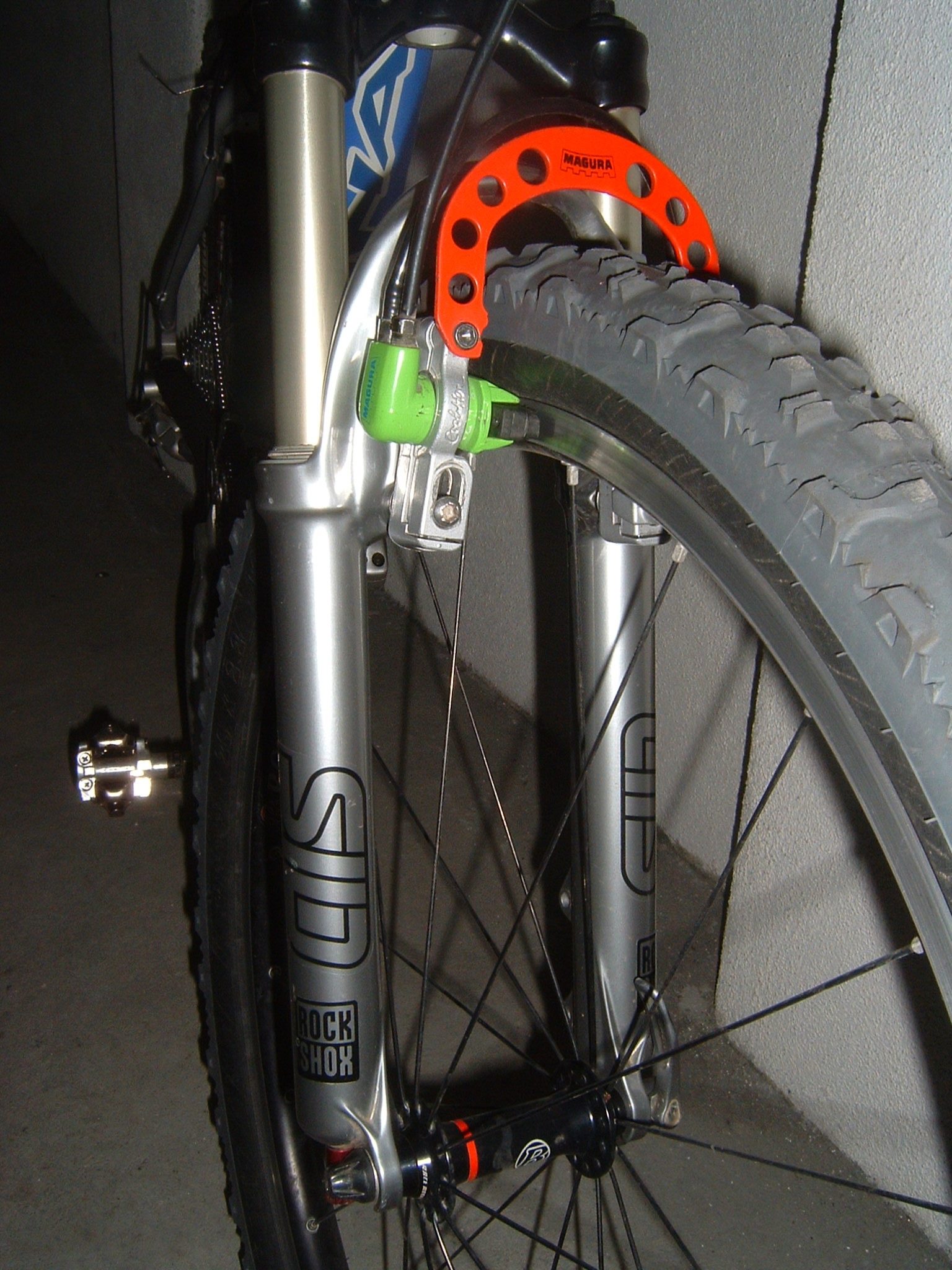

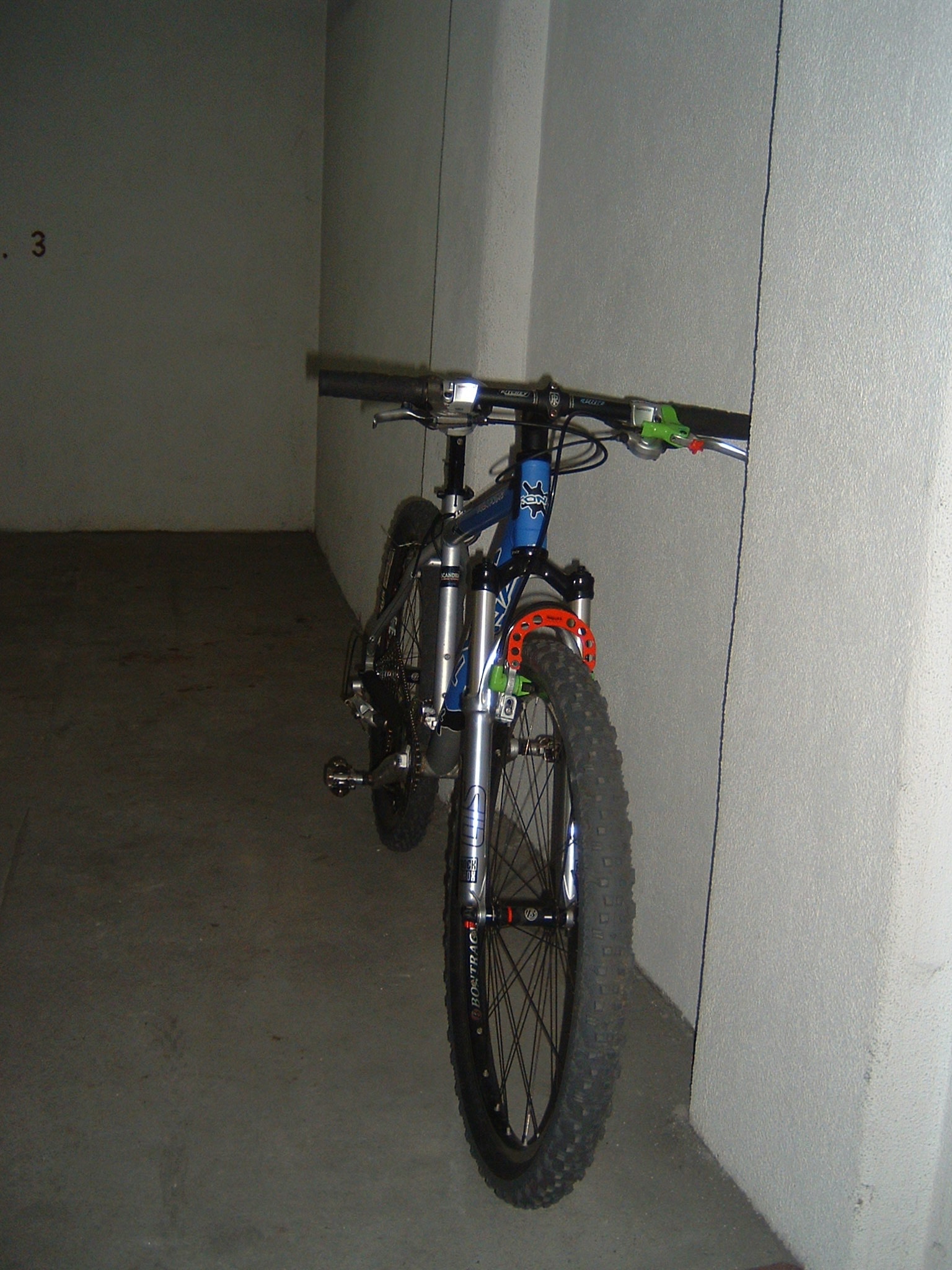

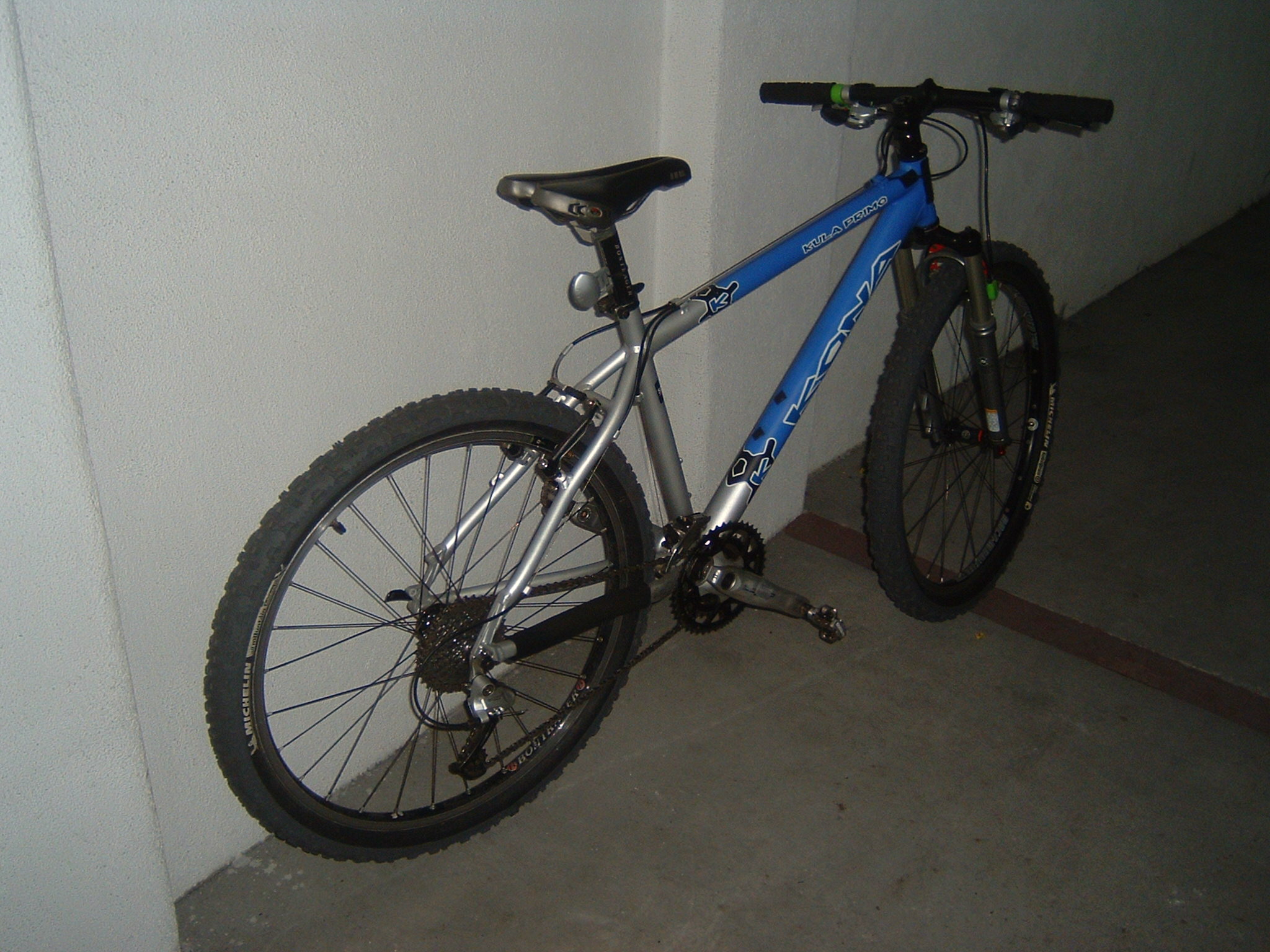

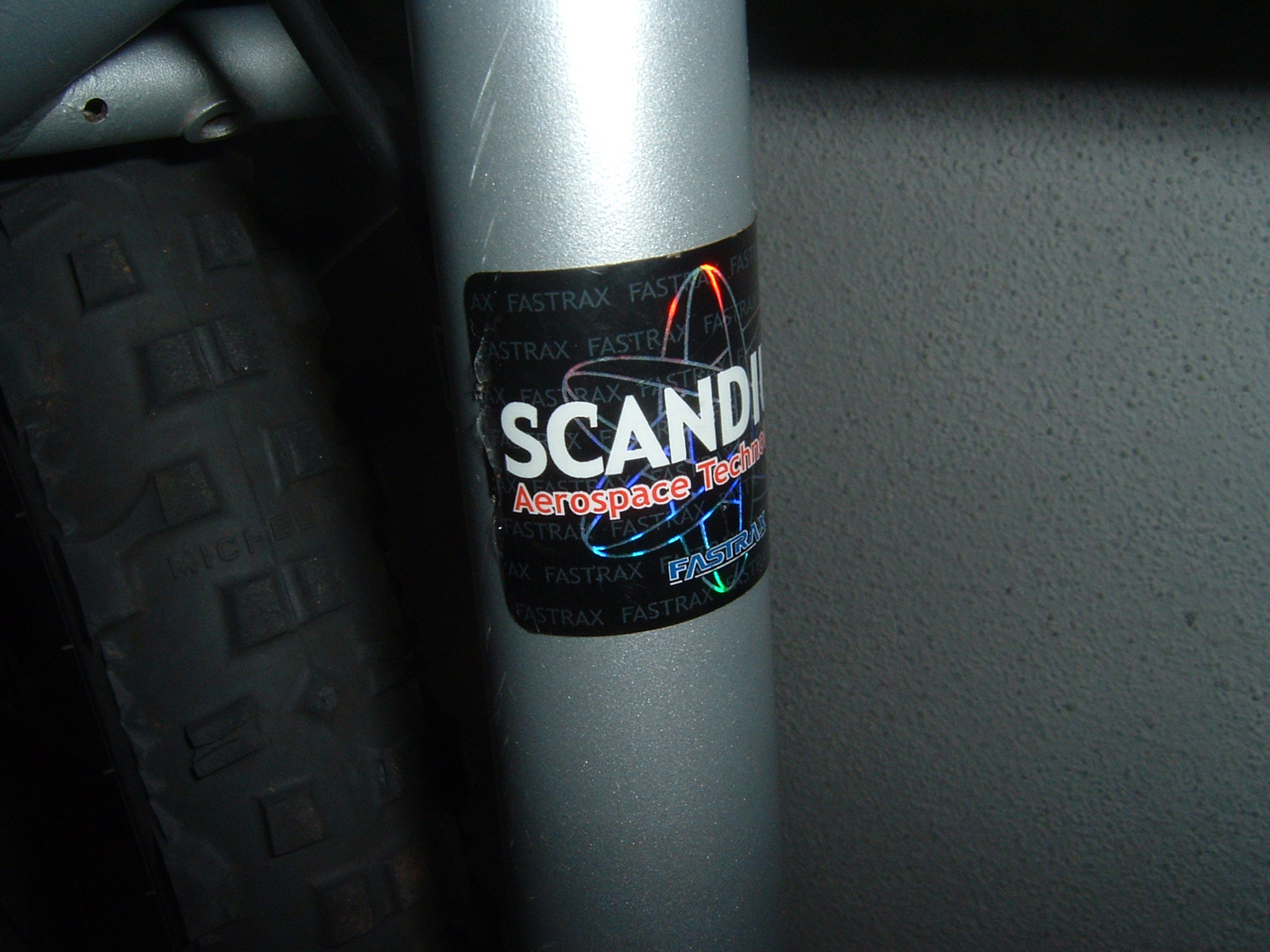

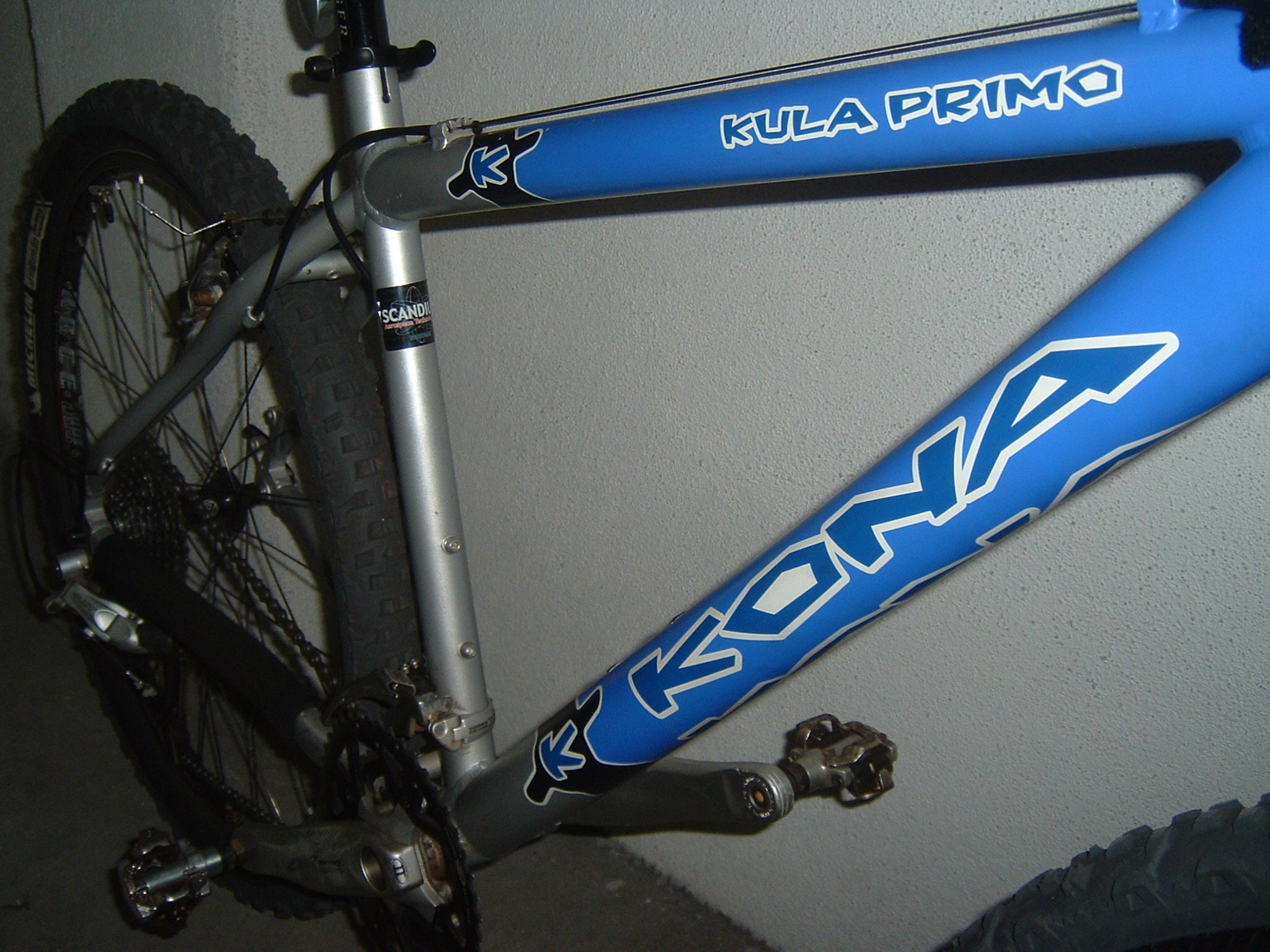

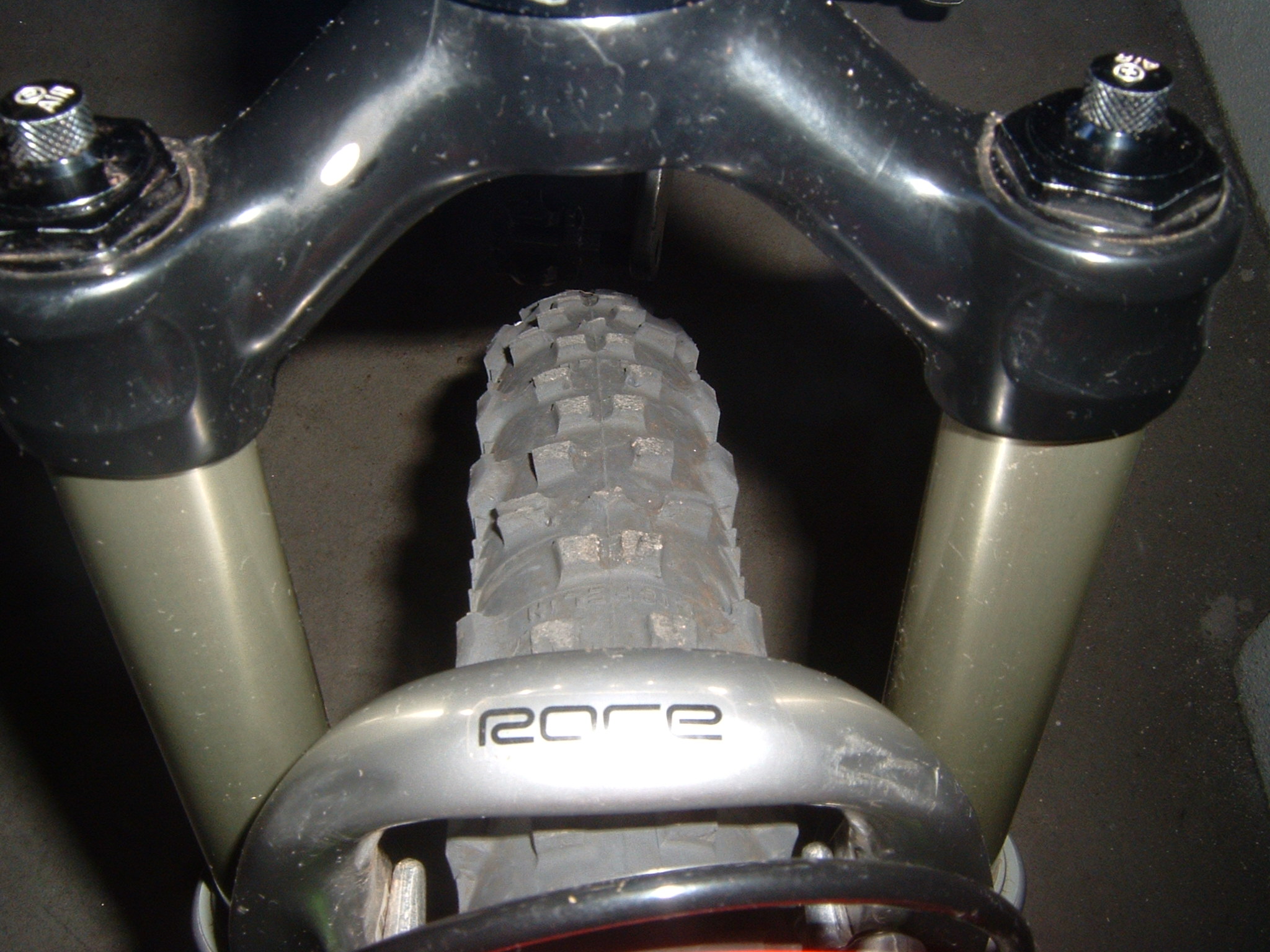

Some might say this was my first Mountain Bike. Purchased second-hand in June or July 2007, it had a very light “Scandium” frame (SC7000 alloy (web archive)), a Rockshox SID Dual-Air suspension fork, Shimano XT drivetrain, V-Brakes which were replaced by Magura HS33 brakes eventually.

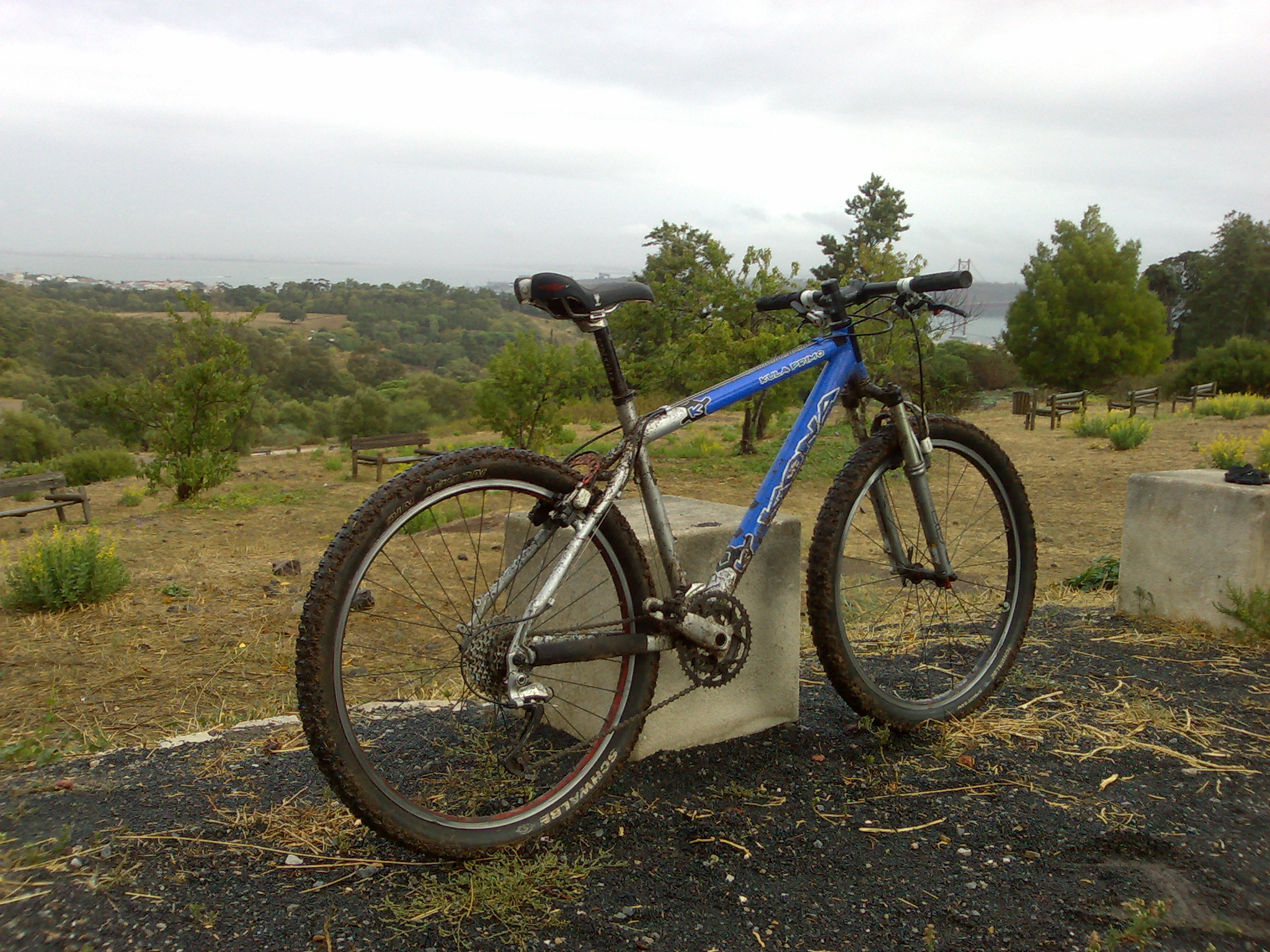

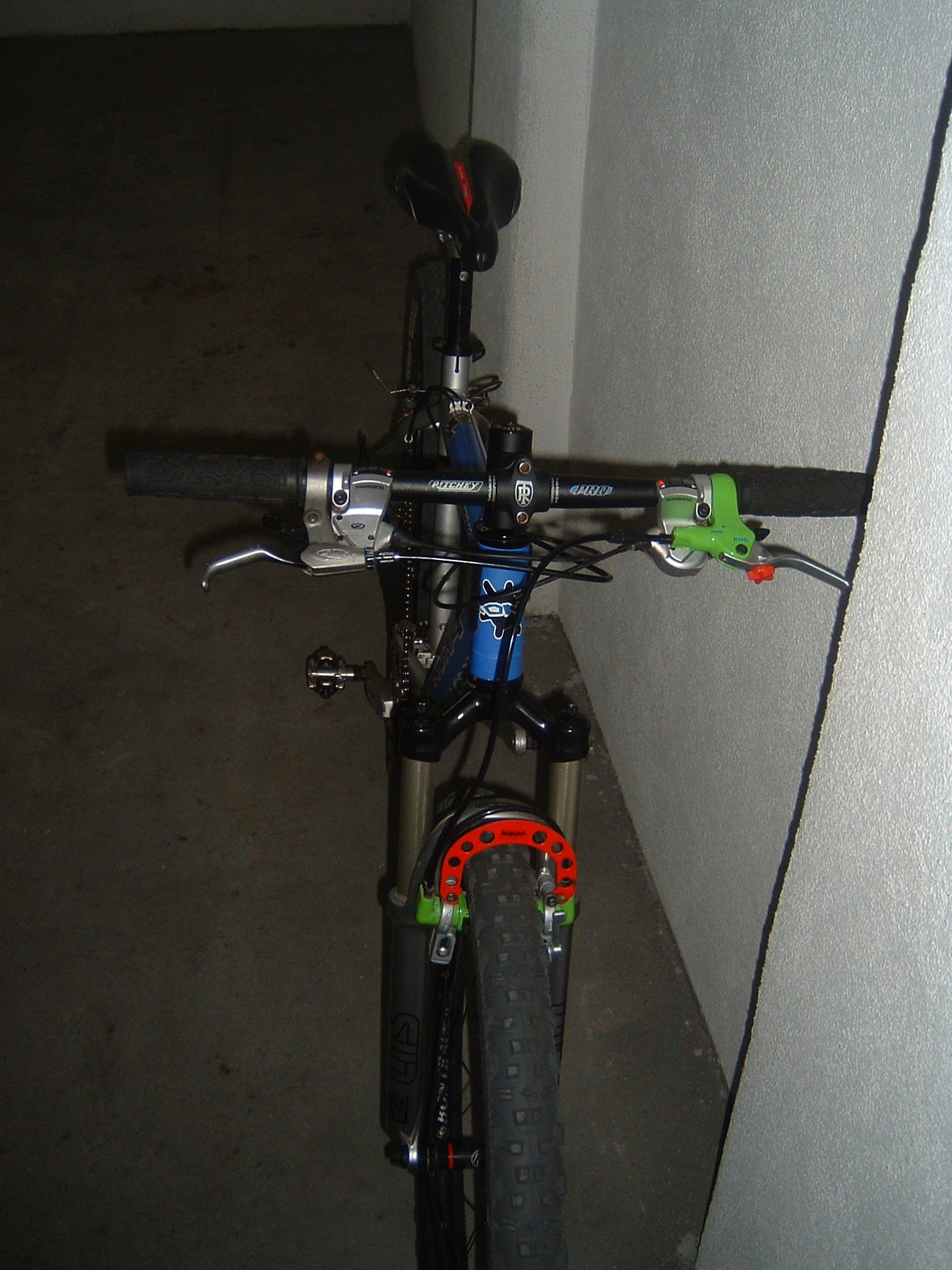

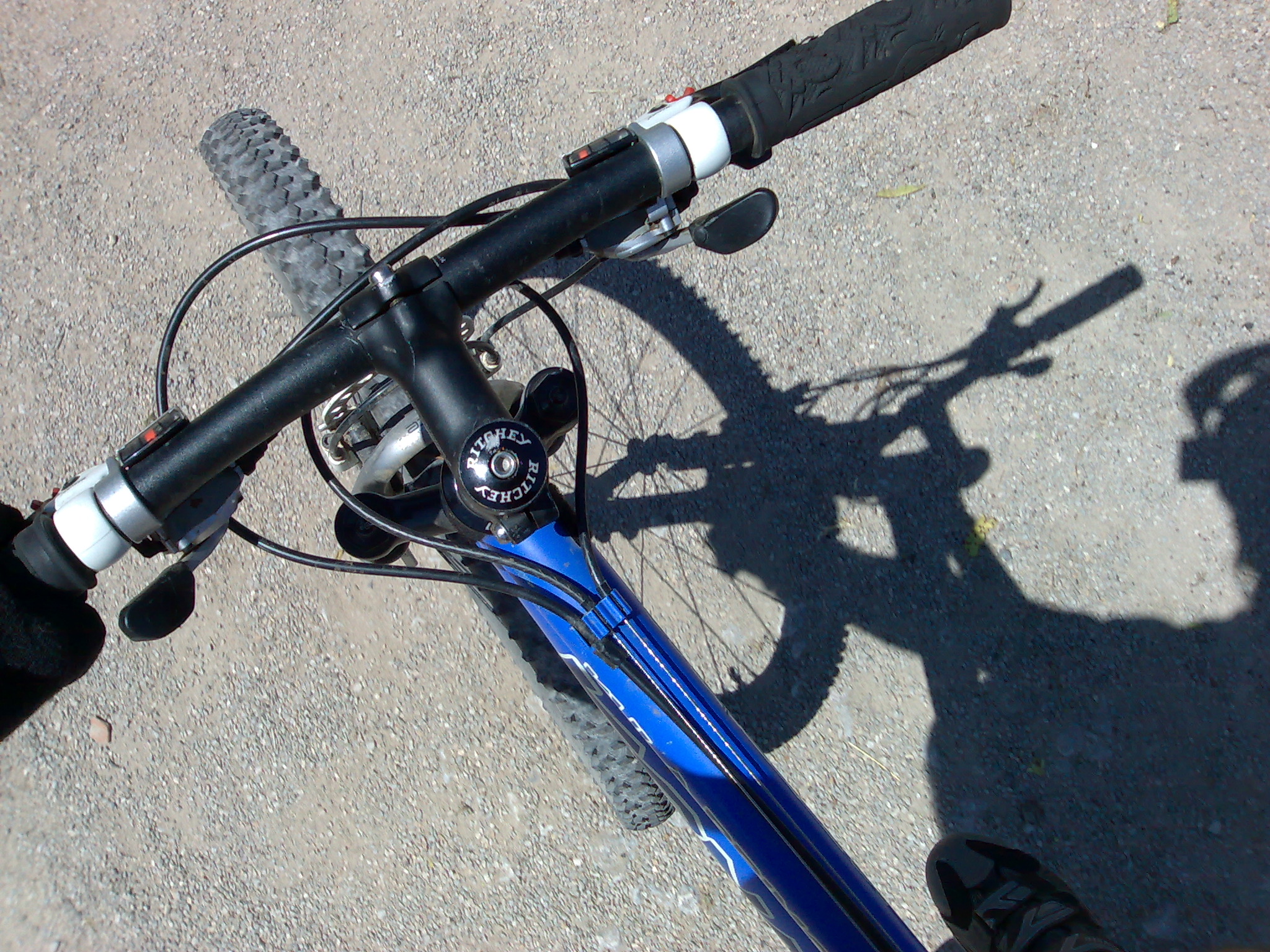

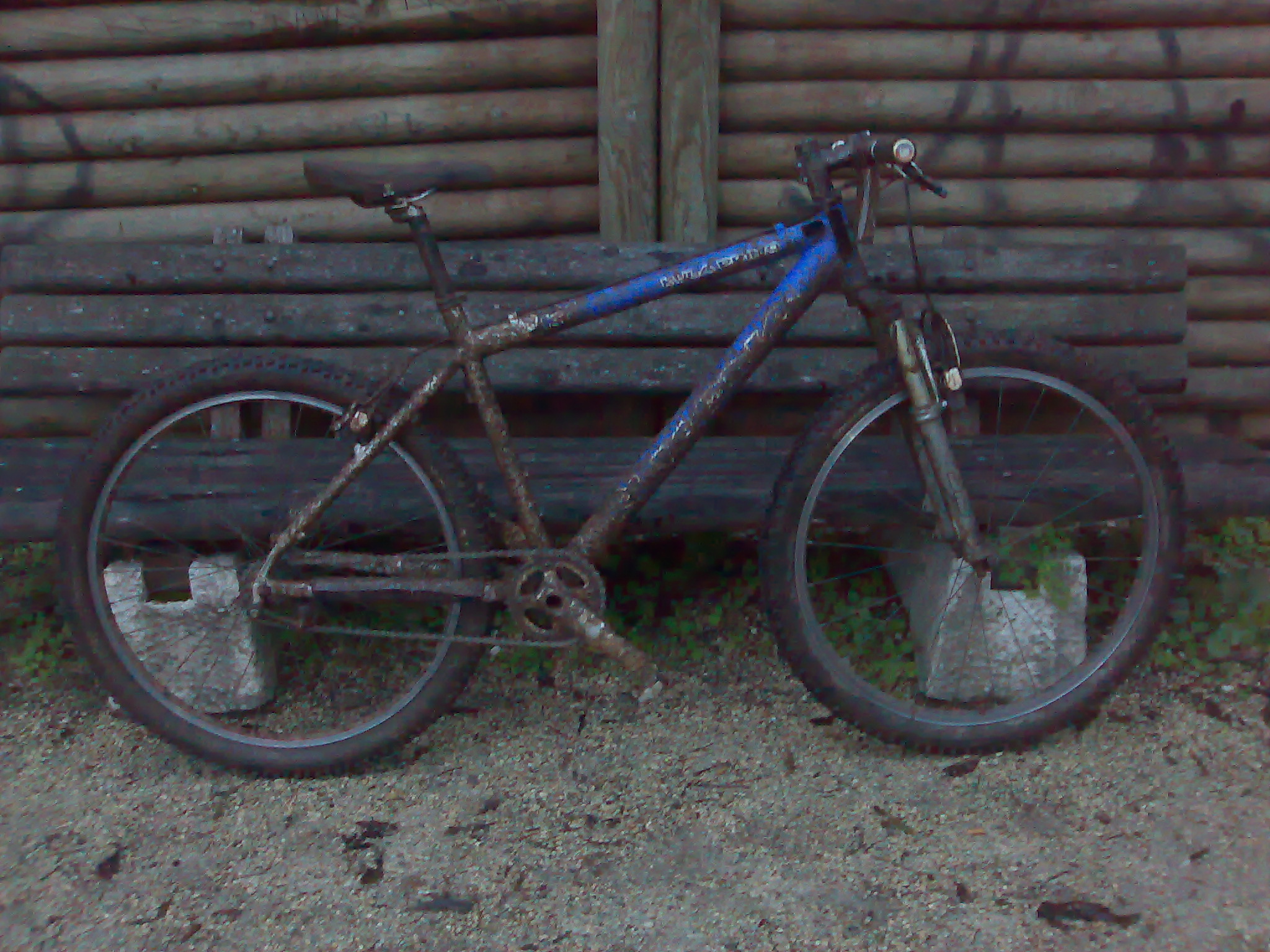

Sorry for the awful pictures. As you can see in the last picture, at some point in time I converted it to single-speed. Don’t ask me why though, as I can’t recall what drove me to do it. I really like the simplicity of single-speed, but I was riding this bike uphill a lot, that’s for sure. Apart from the conversion to single-speed, this bike had two nice additions, 1/ headset spacer with bottle opener 2/ handlebar end plugs with bottle caps, clearly this accessories went hand-in-hand.

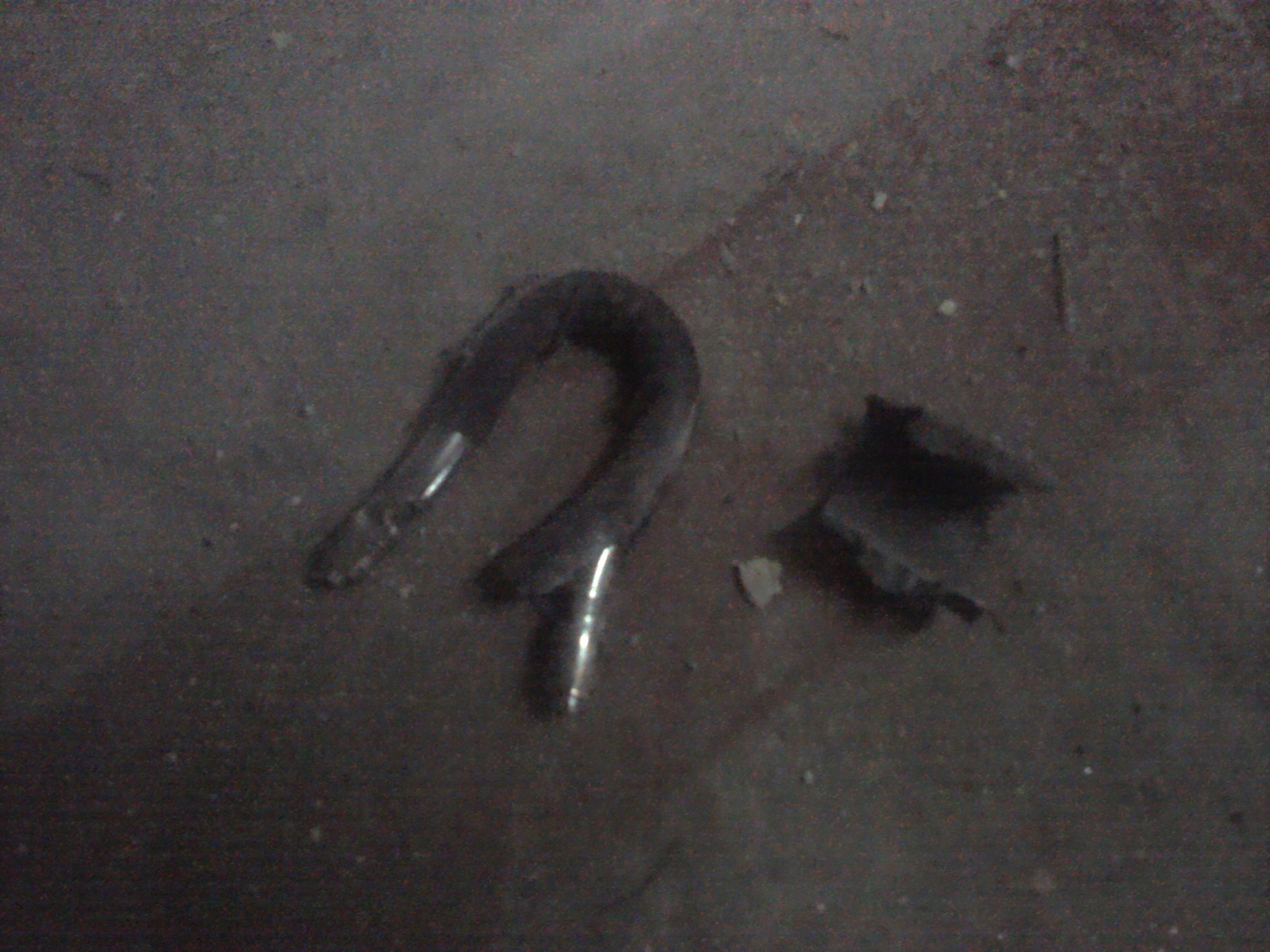

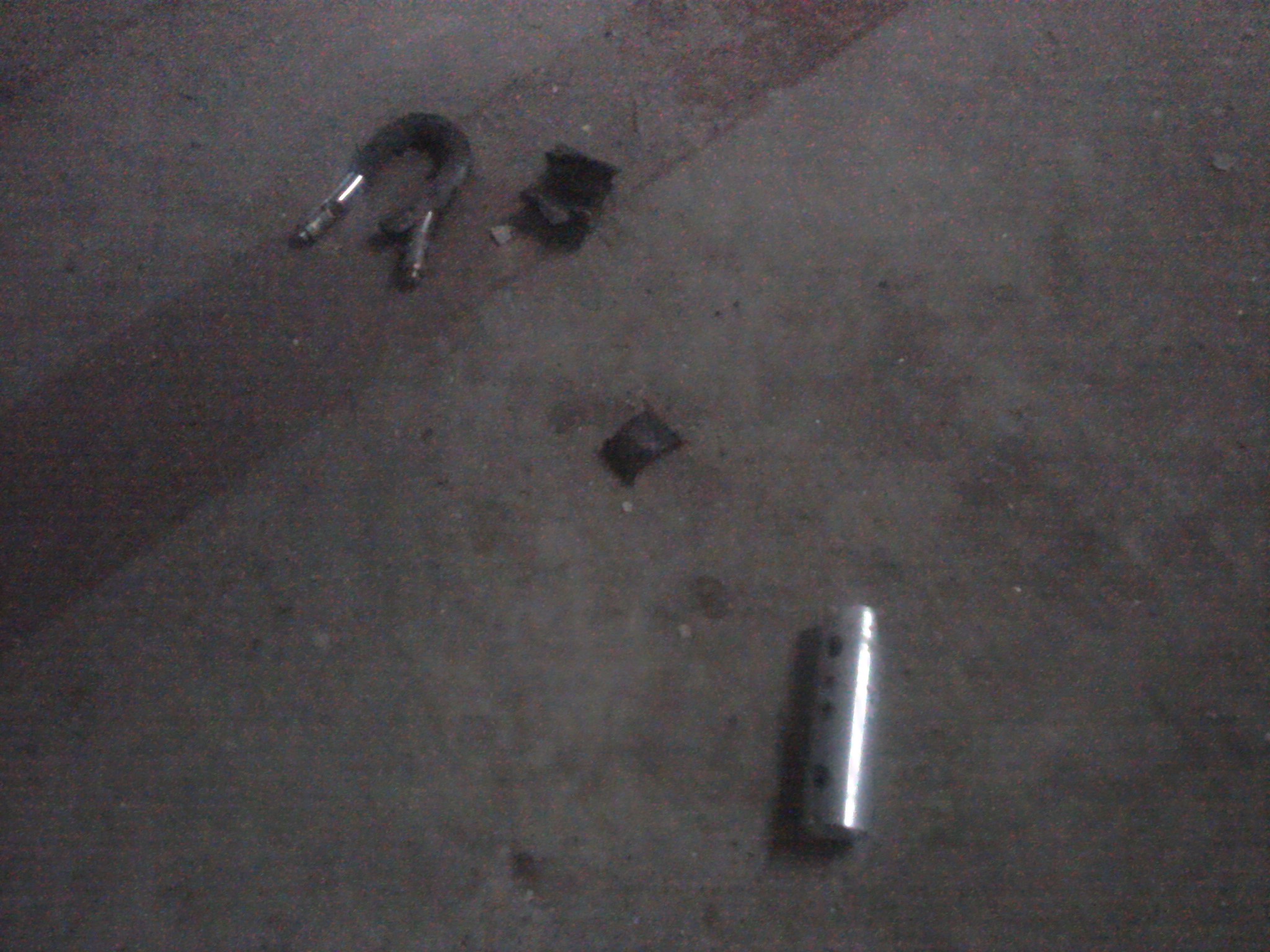

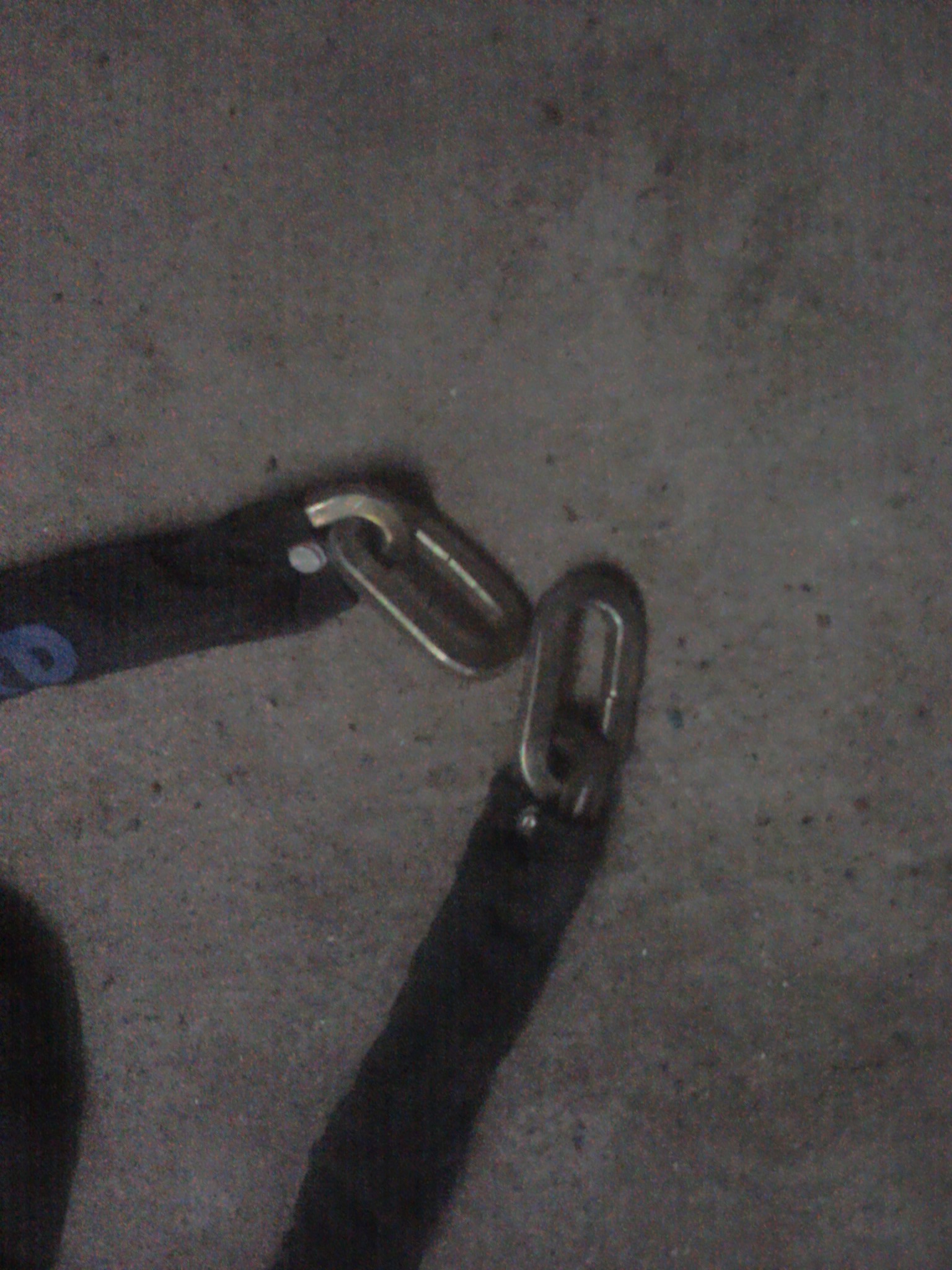

Unfortunately it had an early demise (from my life), as it was stolen from my garage on April 2012. Unlike my Scott Purgatory, the Kona was using a proper lock/chain. On the night it was stolen, I was using my commuter bike, so there was one less U-lock in-place. But still, it was locked!! :-(
Technical specifications
Thanks to the Web Archive I got a snapshot from a fan website with references to the 2005 Kula Primo, kona.dk!
- Kona 2005 - Bike weights (PDF)
- Kona 2005 - Frame specs details (PDF)
- Kona 2005 - Frame suspension details (PDF)
- Kona 2005 - Frame tubing details (PDF)
- Kona 2005 - Frame geometry (JPEG)
- Kona 2005 - Derailleur hangers (PDF)
- 2005 Technical Information - Konaworld.com (PDF) (web archive)
| Key | Value |
|---|---|
| Model | Kula Primo |
| Factory | Hodaka |
| Derailleur hanger type | S |
| Disc mounts | I.S. |
| Seat post | 27.2mm |
| Bottom bracket | 68mm shell |
| Headset | 1 1/8" |
| Sizes | 16/18/19/20" |
| Disc compatible | Yes |
| Canti/V-Brake compatible | Yes |
| Fork length | 476mm geometry |
| Fork travel | 100mm (?) |
| Recommended SAG | 25mm (?) |

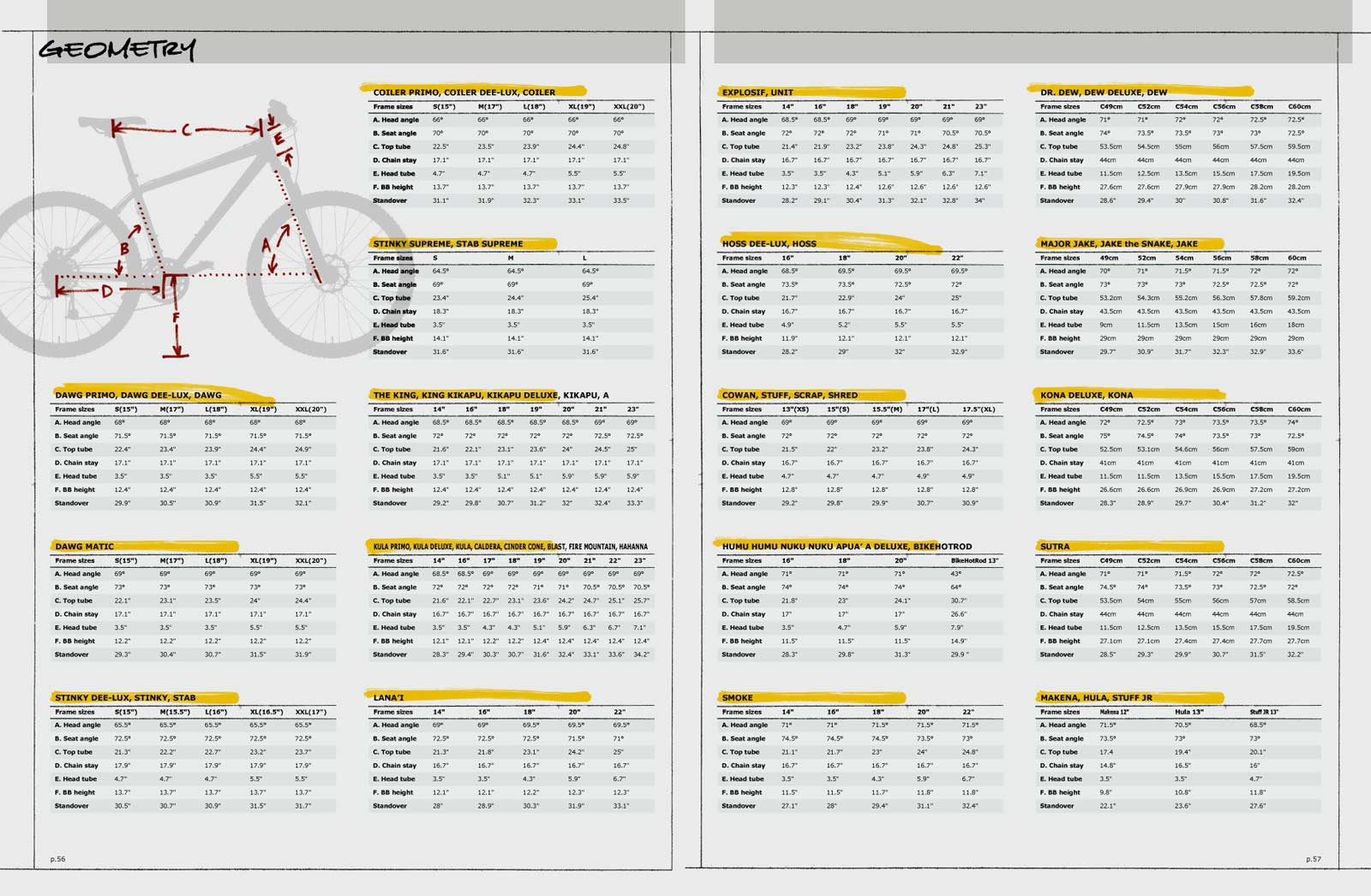

Frame geometry
| Frame sizes | 16" | 18" | 19" | 20" |
|---|---|---|---|---|
| A. Head angle | 68.5º | 69º | 69º | 69º |
| B. Seat angle | 72º | 72º | 71º | 71º |
| C. Top tube | 22.1" | 23.1" | 23.6" | 24.2" |
| D. Chain stay | 16.7" | 16.7" | 16.7" | 16.7" |
| E. Head tube | 3.5" | 4.3" | 5.1" | 5.9" |
| F. BB height | 12.1" | 12.2" | 12.4" | 12.4" |
| Standover | 29.4" | 30.7" | 31.6" | 32.4" |
Frame tubes
| Element | Measurements |
|---|---|
| Material | Scandium 7000 |
| Top tube | 38X1.5/0.65/1.2t |
| Seat tube | 30.6/31.8X1.7/0.9/1.5t |
| Seat post | 27.2mm |
| Down tube | 50X1.5/0.8/1.3t |
| Head tube Gusset | Yes |
| Seat stay | 20.5X1.6/1.2t |
| Chain stay | 25.4X1.5/0.8/1.1t |
